- General Information
- Manufacturer
- Cisco Systems, Inc
 - Manufacturer Website Address
- http://www.cisco.com/c/en_au
 - Brand Name
- Cisco
 - Product Line
- Catalyst
 - Product Series
- 3850
 - Product Condition
- Refurbished
 - Product Type
- Ethernet Switch

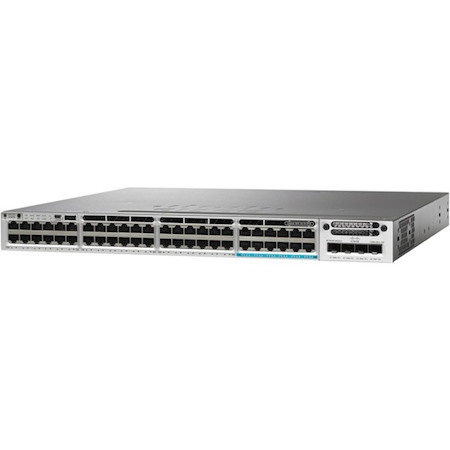

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
- Interfaces/Ports
- Total Number of Network Ports
- 48
 - Uplink Port
- Yes
 - Stack Port
- Yes
 - Port/Expansion Slot Details
- 48 x Gigabit Ethernet UPoE

- Media & Performance
- Media Type Supported
- Twisted Pair
 - Ethernet Technology
- Gigabit Ethernet
 - Network Technology
- 1000Base-T

- Network & Communication
- Layer Supported
- 3

- Management & Protocols
- Manageable
- Yes

- Power Description
- Power Source
- Power Supply
 - Redundant Power Supply Supported
- Yes
 - Power Consumption
- 84.97 W

- Physical Characteristics
- Compatible Rack Unit
- 1U
 - Form Factor
- Rack-mountable
 - Desktop
 - Height
- 44.5 mm
 - Width
- 449.6 mm
 - Depth
- 444.5 mm
 - Weight (Approximate)
- 8 kg

- Miscellaneous
- Environmentally Friendly
- Yes
